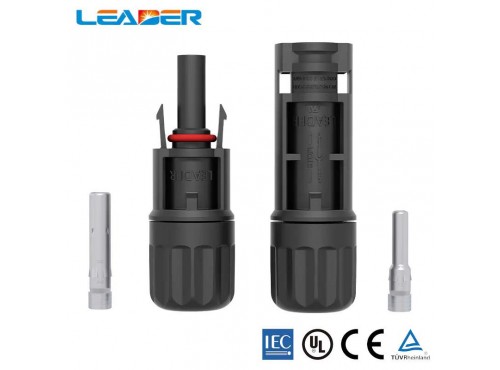

Pair MC4 Solar Connectors For PV Cable 4mm 40A 6mm 45A 1500VDC IP68

Pair MC4 Solar Connectors For PV Cable 4mm 40A 6mm 45A 1500VDC IP68

Description

LEADER® solar connector is used for safe and simple series or parallel connecting solar PV modules, inverters, or solar power plant systems. Certification with TUV/UL/IEC/CE standards, suitable for Ø2.5-Ø16mm² photovoltaic solar cables. It is suitable for various harsh outdoor environments such as deserts, lakes, seasides, and mountains (climate environment with high temperature, high humidity, and strong salt content). It is an important part of the solar system. Good connection quality ensures the long-term and safe operation of the photovoltaic system and effectively reduces the failure rate of the photovoltaic system and the later operating costs.

Product NO.
PV-BN101A

Insulation material
PPO/PC

Rated voltage
TUV1500V/UL1500V

Rated current-2.5mm²
35A (14AWG)

Rated current-4mm²
40A (12AWG)

Rated Current-6mm²
45A (10AWG)

Degree of protection
IP68 Class II

Ambient temperature
-40℃ up to +90℃

Certification
IEC62852/UL6703

Colour
Black

Packaging
1x Male Female Pair MC4 Connector with Inserts Loose
